千兆光口轉電口模塊

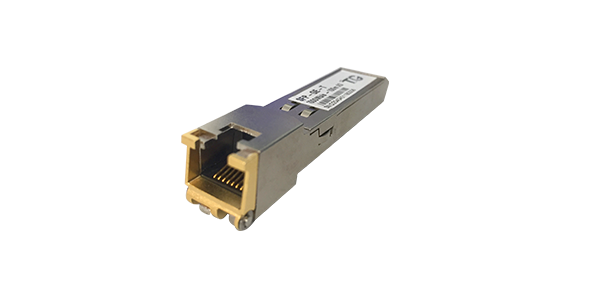

SFP-GE-T千兆電口模塊(RJ45),使用于交換機等網絡設備SFP千兆光纖接口，轉換成為千兆RJ45以太網口

分享到 :

● Up to 1.25Gb/s bi-directional data links

● Hot-pluggable SFP footprint

● TX Disable and RX Los/without Los function

● Fully metallic enclosure for low EMI

● Low power dissipation (1.05 W typical)

● Compact RJ-45 connector assembly

● Access to physical layer IC via 2-wire serial bus

● Operating case temperature range of 0 °C to +70 °C (Commercial) or -20°C to +85°C (Extend)

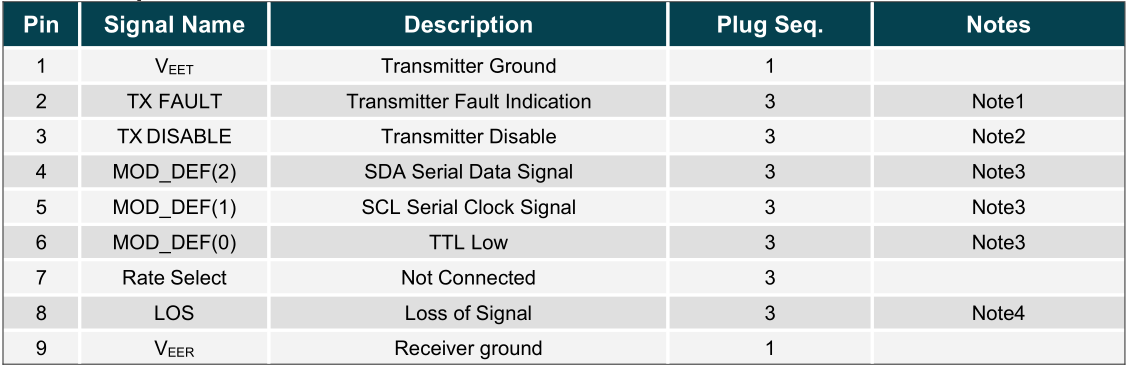

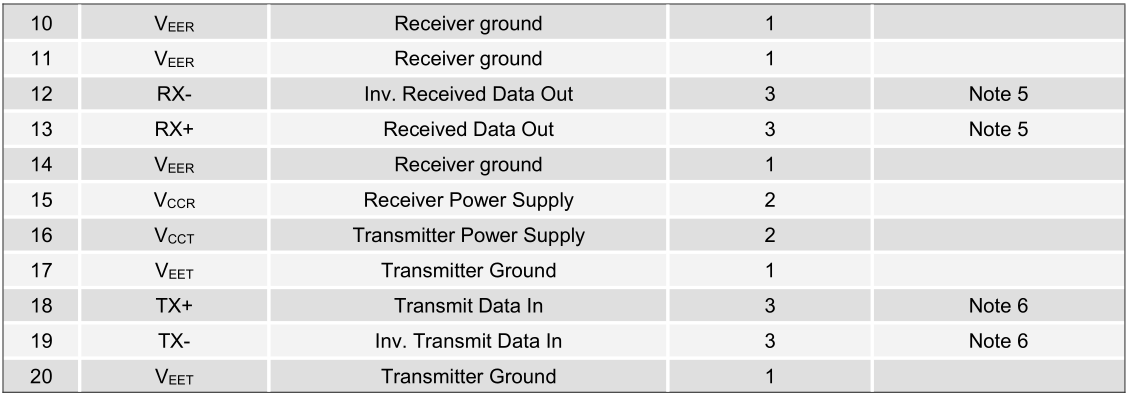

Pin Descriptions

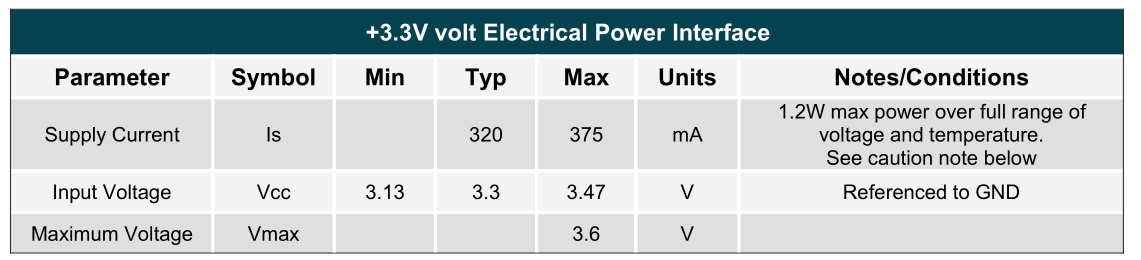

+3.3V Volt Electrical Power Interface

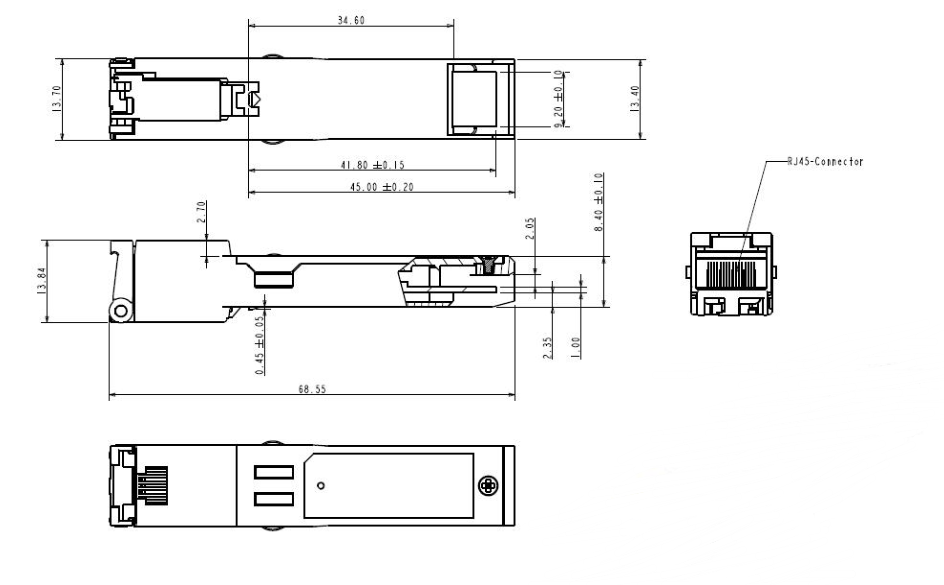

Mechanical Specifications

無

設備名稱	設備信息
SFP-GE-T	千兆SFP電口模塊-(RJ45)
